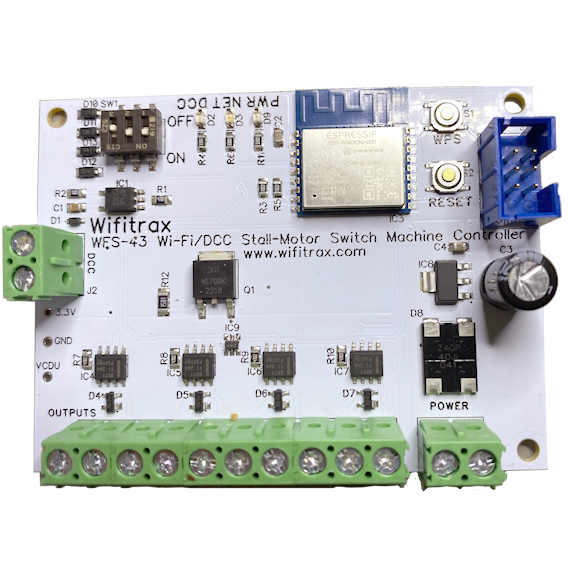

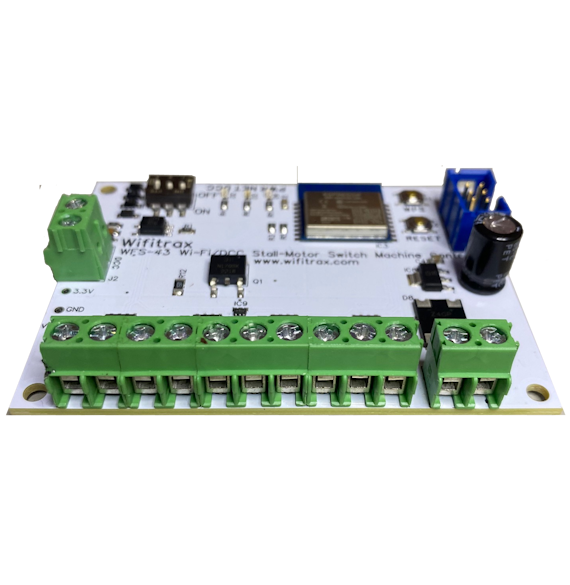

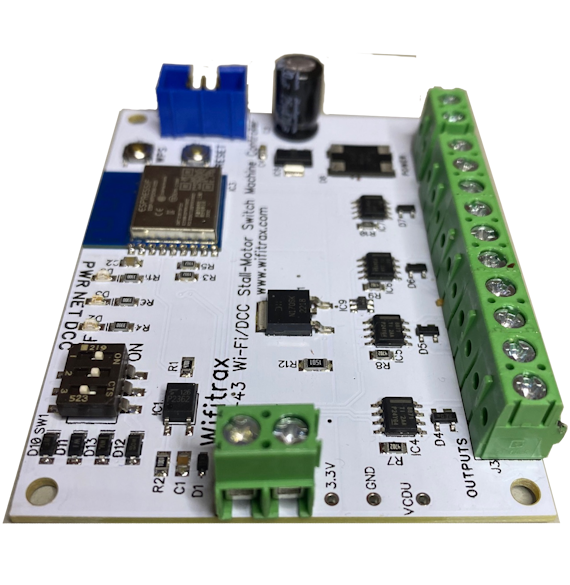

WFS-43 Quad Wi-Fi Stall-motor Switch Machine Controller

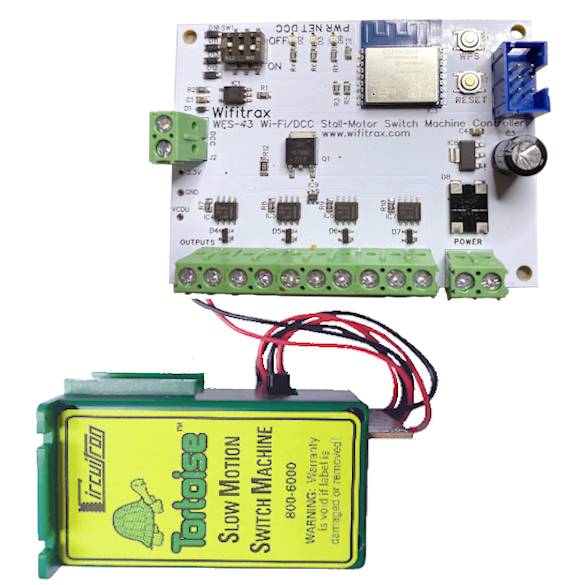

This module provides Wi-Fi or DCC control of four stall-motor switch machines such as the popular Tortoise from Circuitron and others.
There are many ways to operate the turnouts controlled by the WFS-43.

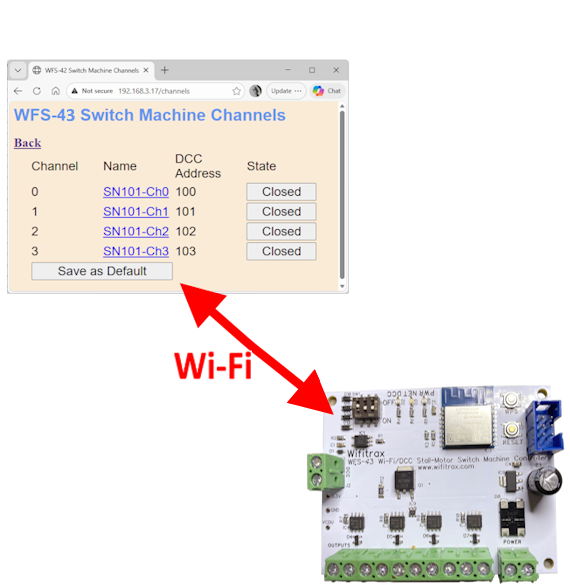

The simplest is to connect a browser to the WFS-43 web pages and operate the turnouts by tapping buttons on the web page. You'll probably use this for initial checkout.

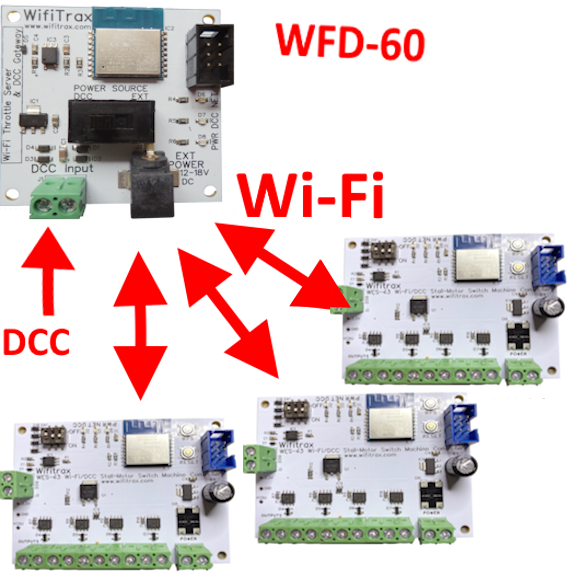

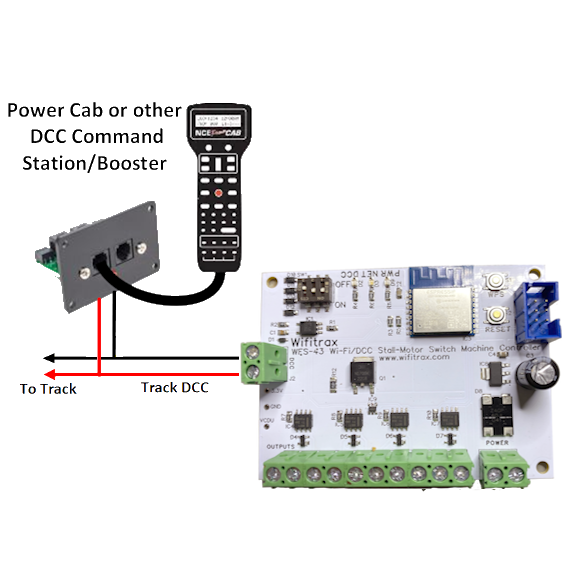

But to make best use of one or more WFS-43 you have two alternatives. You can connect a DCC Command Station/Booster to the DCC inputs of a set of WFS-43 and control them centrally. Or you can use a Wifitrax WFD-60 Wi-Fi and DCC Gateway. This device discovers and controls a set of WFS-43 (or other Wifitrax WFS series) to provide centalized control. The WFD-60 provides a WiThrottle server so that you can use an app such as Engine Driver or WiThrottle or a device like TCS UWT-100/50 to control turnouts. You'll likely use this method if you are using a WFD-60 to control large-scale locomotives.
The WFD-60 also provides a DCC input, so you can use an existing DCC Command Station/Booster to control your turnouts by simple connecting its Track DCC output to the WFD-60 DCC input
But that's not all. The WFD-60 also provides its own set of customizeable schematic panels so that you can build a schematic diagram of all or part of your layout and control your turnouts by clicking or tapping on the turnout image in the panel.
Please read the Quick Start Document or Full Manual to see diagrams of typical usage.

The WFS-43 can operate stall-motor switch machines only. It has its own DCC input or can use a WFD-60 to accept DCC for a collection of WFS-43 modules.
DIP Switches on the WFS-43 module allow a range of output voltages to be selected.

Read the Quick Start Document
