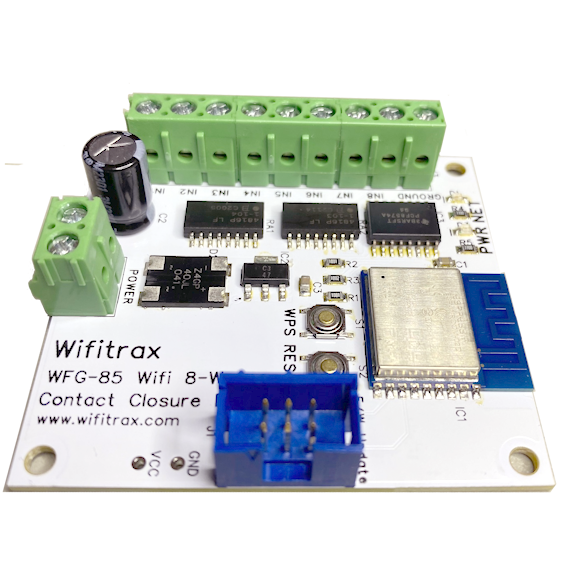

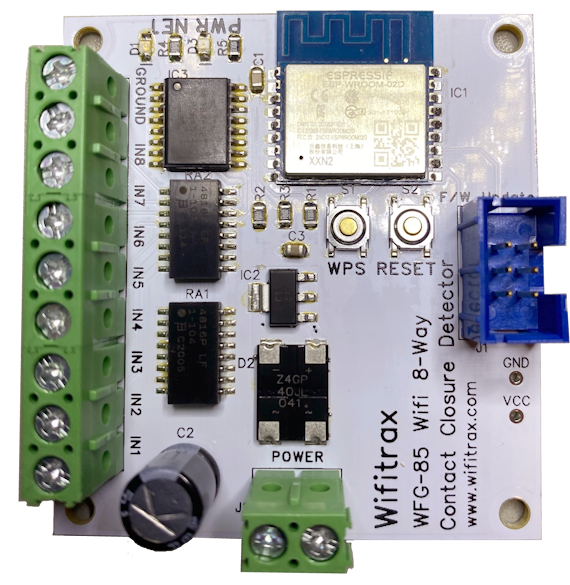

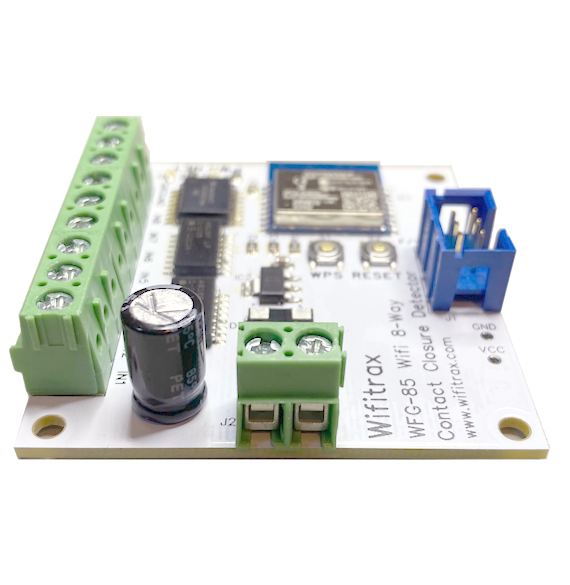

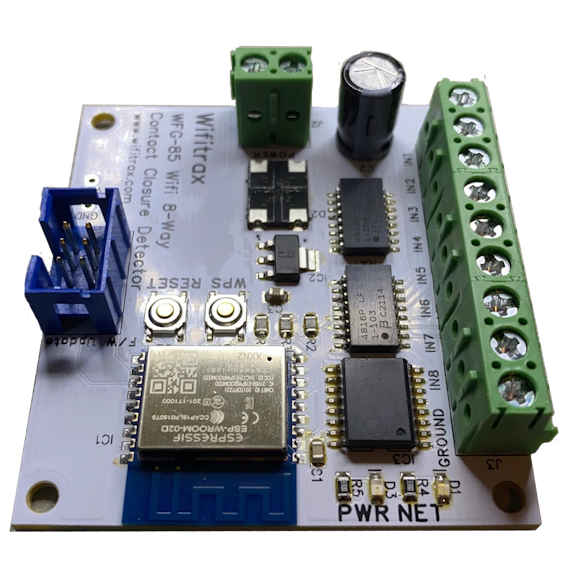

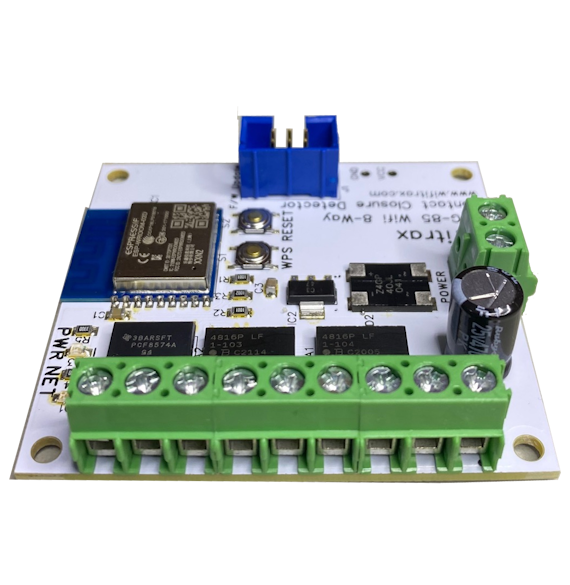

WFO-85 8-Way Wi-Fi Contact Closure Track Occupation Detector
Available Now!
With this module you can detect the action of contact closure devices such as reed relays, buttons or other devices. You can display the status of the 8 channels using Wifitrax WFD-60. For example, you can use the Panels feature of the WFD-60 to use the WFO-85 as an occupation detector to display track sections on the Panel as occupied or unoccupied.
Full Description and Specification Read the Quick Start Document Read the Full Manual
WFO-85 8-Way Wi-Fi Contact Closure Track Occupation Detector
Detail to be added
WFO-85 8-Way Wi-Fi Contact Closure Track Occupation Detector. Specifications.
Dimensions
Length: 60mm (2.36") Width: 55mm (2.16") Maximum Height: 16mm (0.63")
Functions and Modes of Operation
Installs on your layout to detect closure of up to 8 contacts.
In-built Web Pages,
Operate with WFD-60 Wi-Fi Gateway using Web-Page Panels
Power Supply Options
12 to 18 Volts DC independent power, wired to screw teminals on unit. This unit does not operate using AC.
DCC Track Power supplied from NMRA Compatible DCC Booster may be used as alternative to DC.
Connections

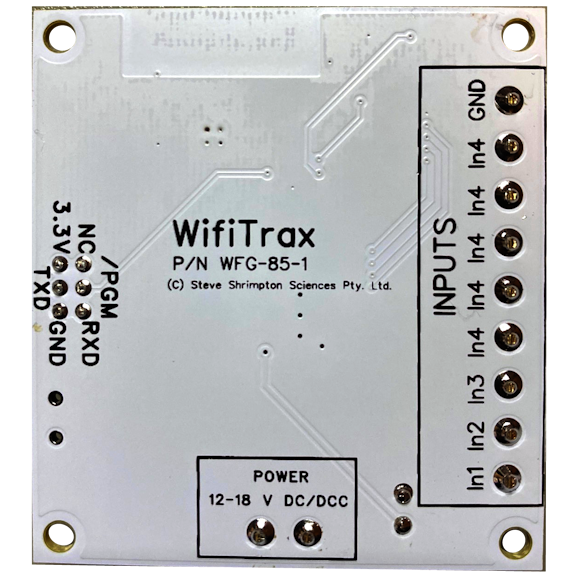

Eight screw terminal inputs and common ground. A channel is activated when its input is connected to ground by a switch, button or relay.
Two screw terminal connections for DC or DCC power. Do not use AC.
Mounting
Four M3 mounting holes for use with screws, nuts and spacers, or suitable wood screws with spacers.
