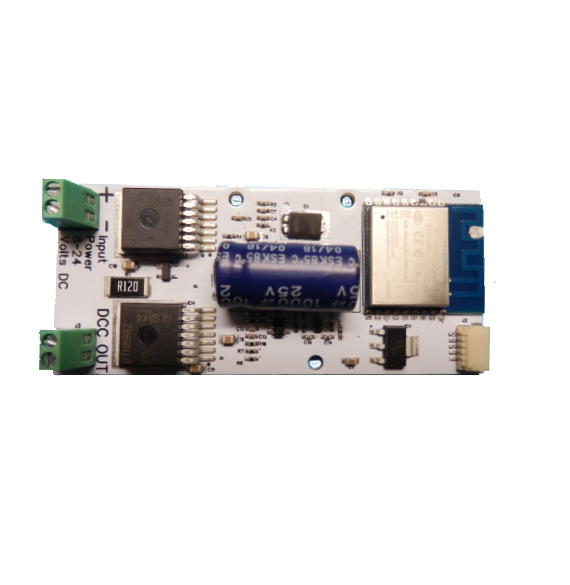

WDMI-24 Wi-Fi/DCC Locomotive Interface Module for Large Scales

WDMI-24 Wi-Fi/DCC Locomotive Interface Module for Large Scales

Available July 2019

US$79.00

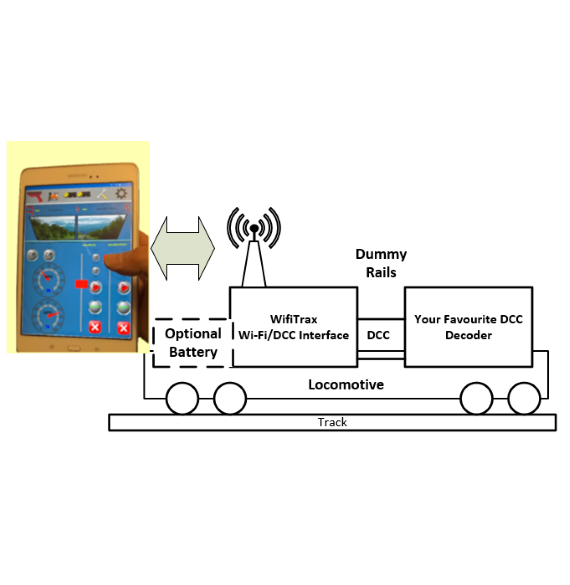

You can install this Wi-Fi/DCC Interface in many large scale locomotives together with your choice of suitable Sound or Non-Sound DCC Decoder. This module provides DCC signals to the decoder under control from your tablet or smartphone over Wi-Fi using our Loco Operator App. DC power can be supplied from a 12 volt battery.

Read the Quick Start Document

SKU :WDMI-24 Categories : Mobile Wi-Fi/DCC Interfaces,Mobile Controllers Tag :Wifi Control

WDMI-24 Wi-Fi/DCC Locomotive Interface Module for Large Scale

This module can be installed within many large-scale model locomotives to provide Wi-Fi control of a DCC Decoder installed in the locomotive. It is compatible with NMRA compliant decoders.

You can then drive the locomotive using our Loco Operator app (Version 3+) or you can use one of our DCCIP Send modules with your existing DCC command station.

The unit is intended for installation in battery powered locomotives with 10-18 Volt batteries.

Functions such as lighting and sound are all controllable from Loco Operator via Wi-Fi.

The WDMI-24 provides programming capability via Wi-Fi in service or operational mode. Locomotives installed with this unit do not need to be placed on a programming track.

Read about Wi-Fi/DCC

Read the Quick Start Document

WDMI-34 Wi-Fi/DCC Locomotive Interface Module

Preliminary Specification - Subject to change until product is released for sale.

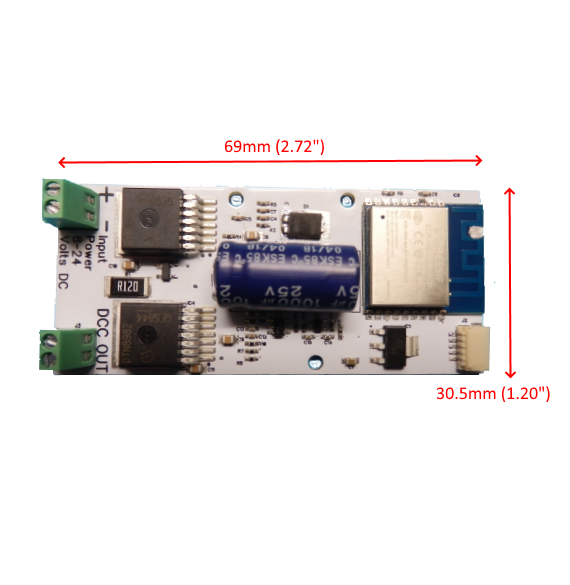

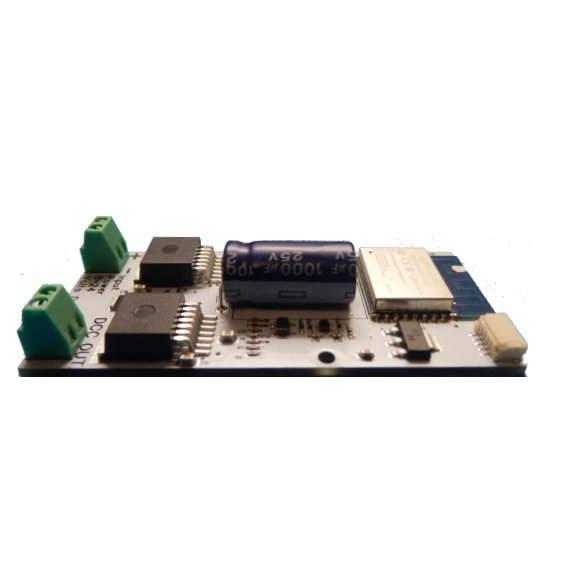

Dimensions

Length: 69mm (2.72") Width: 30.5mm (1.20") Maximum Height: 11.0mm (0.43")

Functions and Modes of Operation

Installs in your locomotive to provide direct Wi-Fi controlled Bipolar DCC to your choice of DCC decoder. You must select a DCC decoder appropriate to the requirements of your locomotive. This can be sound or non-sound. All DCC functions are supported. Use our Loco Operator software to drive your locomotive using direct or infrastructure Wi-Fi.

Unit provides service mode and operational mode programming using our Loco Operator software (version 3+). Locomotive does not need to be placed on a special programming track.

Output Ratings

Maximum Continuous Current: 3.0 Amp. Maximum Stall Current: 4.0 Amp.

Power Supply Options

(1) 10 - 18 Volt Battery.

Mounting

Use your own method of installation such as adhesive mounting tape.

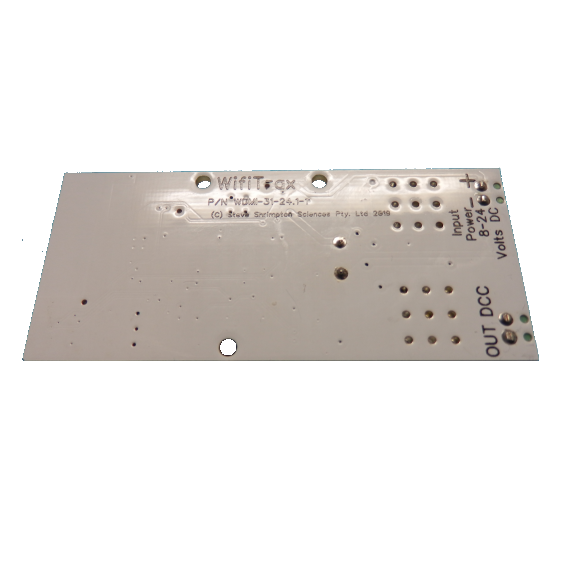

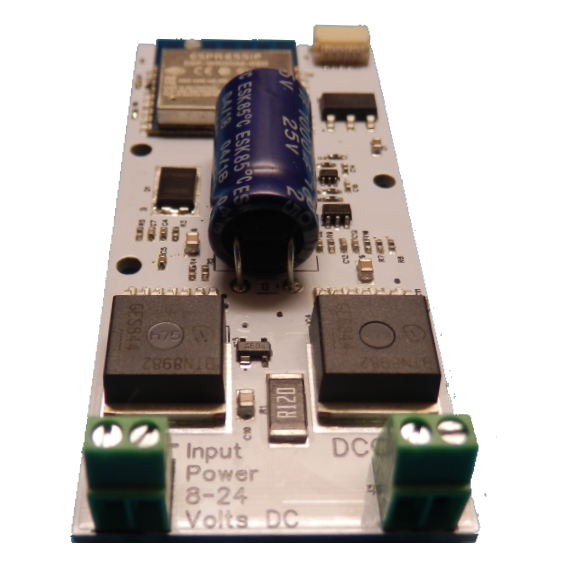

Connections

Screw terminals for battery connection. Plus and Minus. Please observe correct polarity. Diode protection provided.
Screw terminals for DCC output connection to your suitable large-scale DCC Decoder.
